POWER  DRILL  HOUSING




The client had an injection mold for the tool housing but did not have the CAD for the part.

They wished to have the part geometry to conduct stress analysis tests to compare various

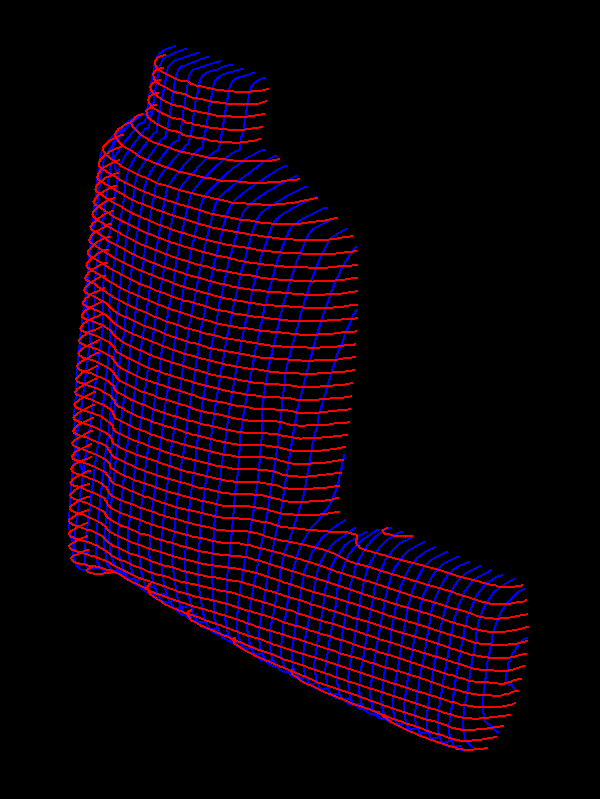

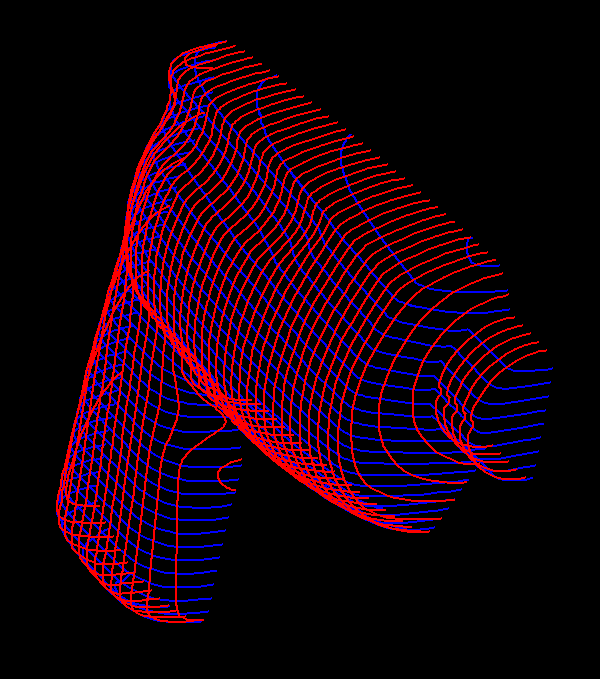

engineering resins.  The surface was 3D digitized for cross section splines.  Detail scans of

the ventilation openings were also performed.

Client : Du  Pont  Engineering Polymers,  Wilmington,  DE

additional modeling performed by    Morland  Engineering

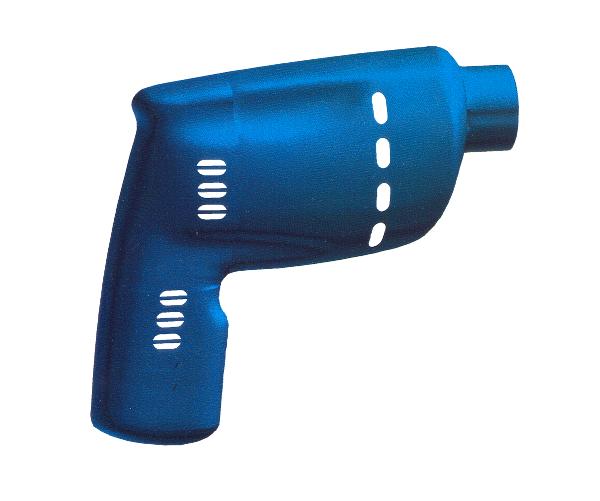

image above is courtesy of Du  Pont  Engineering Polymers

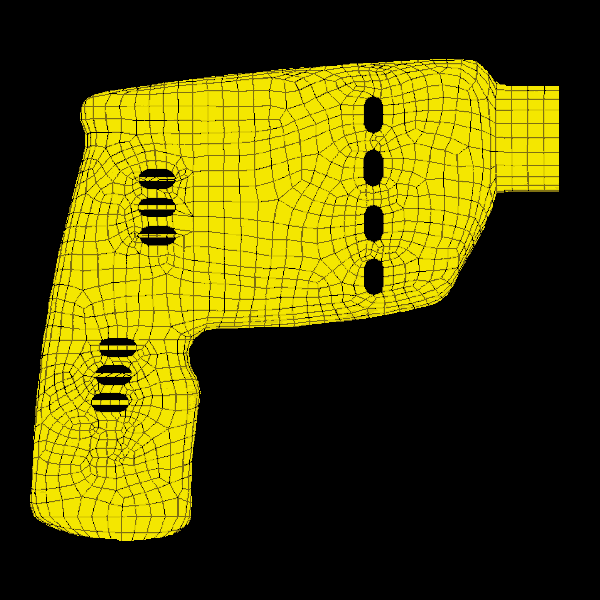

image above is courtesy of Du  Pont  Engineering Polymers
