LCD  PROJECTOR

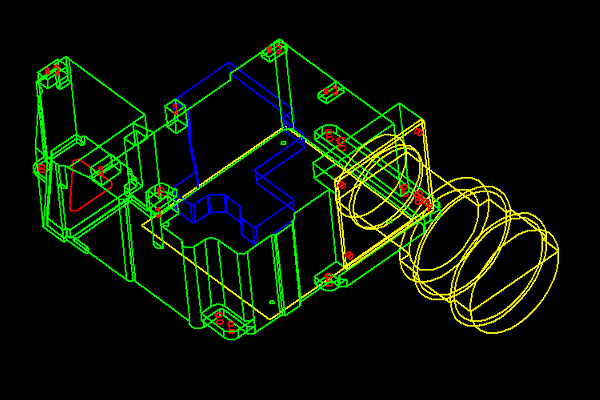

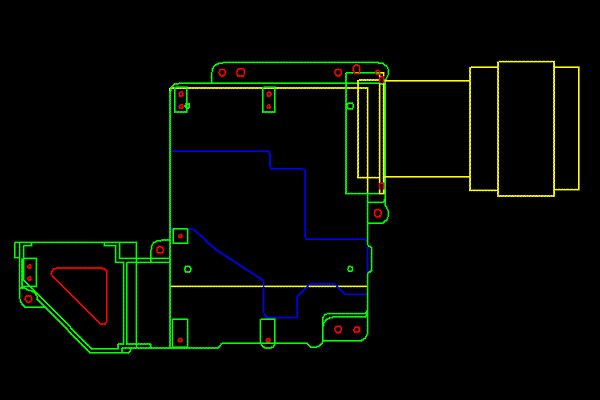

The client had a sample LCD projector for which the CAD data was not readily available. They

needed accurate dimensional data to begin the engineering and the industrial design of an new

enclosure. 2D contours, single point datums and hole locations were combined to provide an

IGES wireframe which they imported to ProEngineer.

Client :  ARGYLE  DESIGN,  Berkeley,  CA
