STEEL   FORGING




The client provided the original electrode forms, a modified part from the worn die cavity, the

original part drawings, and the request to raise the height of center section by  0.375 inches.

Multiple 3D scans and contour scans of both the forged part and the electrode form were

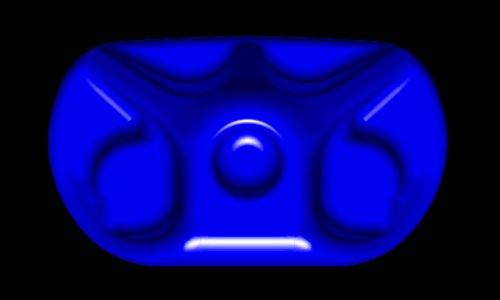

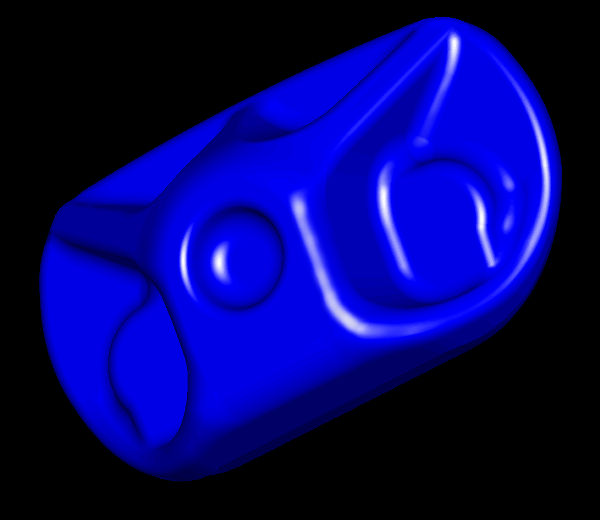

conducted. A CAD model was built from the scan data, drawings and height change.  IGES

surfaces were exported to the client, which runs Euclid.  The new model was used to CNC

machine EDM electrodes.

Client :   VULCAN  FORGE   and  MACHINE,   San Jose,  CA

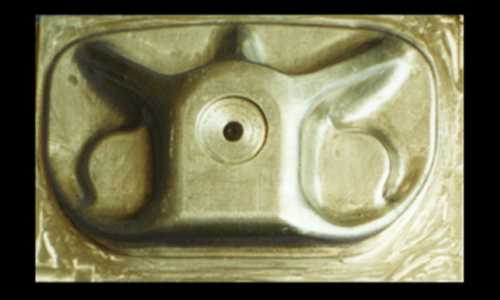

ORIGINAL  ALUMINUM  ELECTRODE  FORM

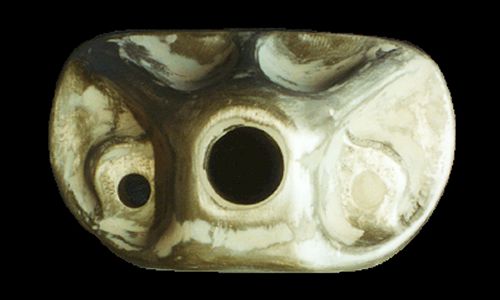

FORGING  FROM  WORN  CAVITY  and WITH  THE EDGE  MODIFIED

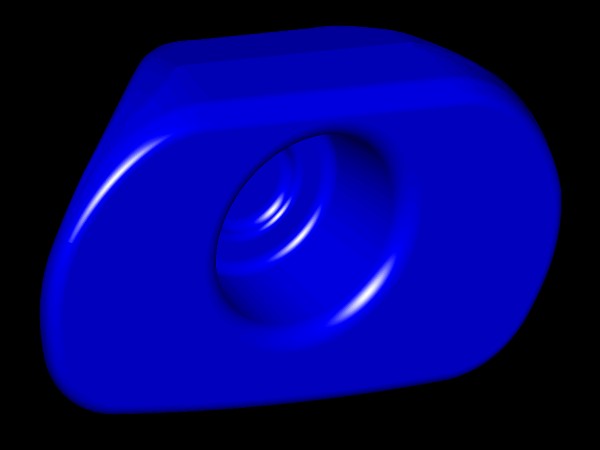

THE  BACKSIDE



THE  CENTER  IS  THINNED  OUT  FOR  HOT  PUNCHING
